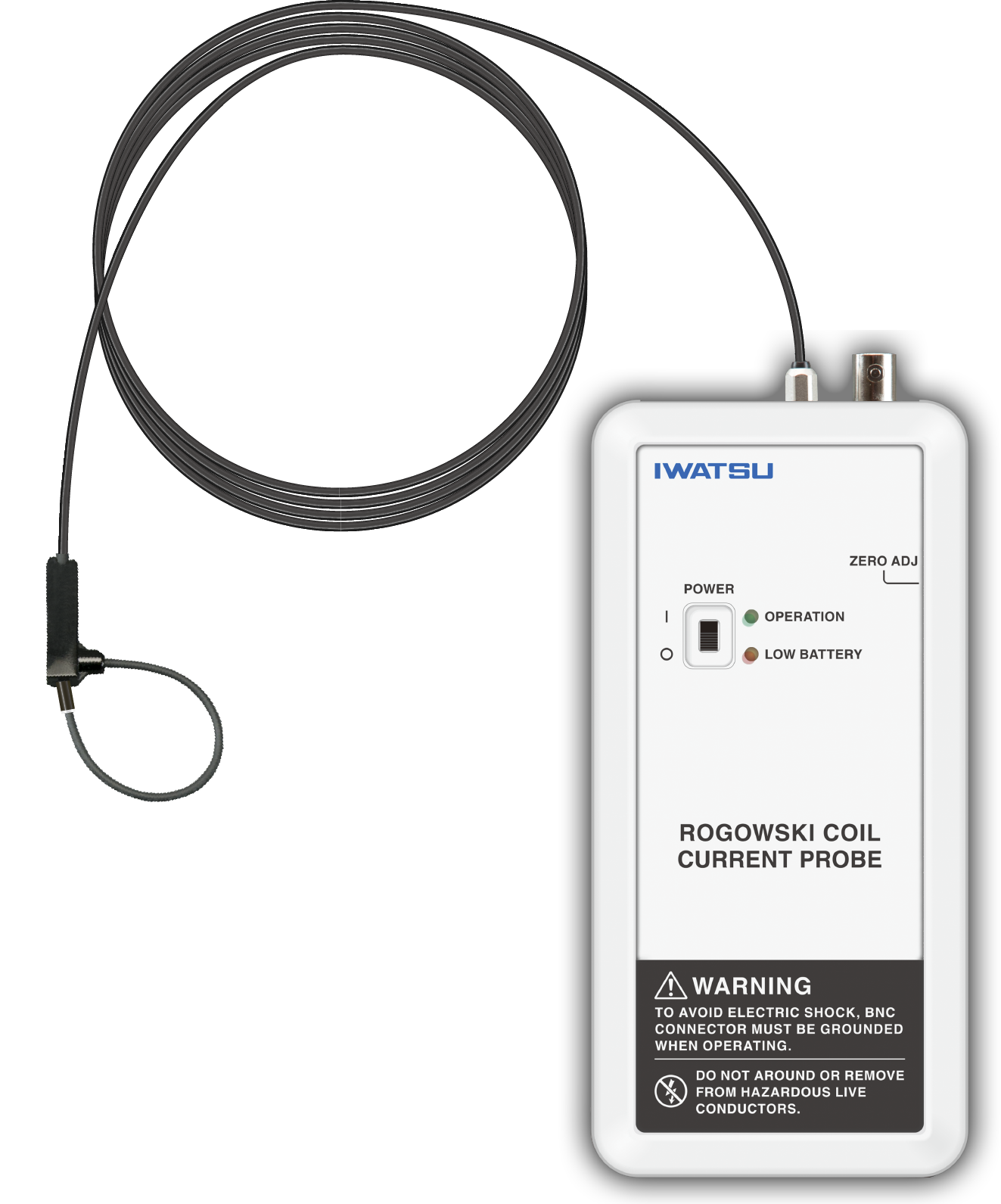

Iwatsu® Rogowski Spulen Serie

Serie SS-280A

Bestellnummer	Bandbreite (-3dB)	Stromstärke	Rauschen	Empfindlichkeit	Peak di/dt (kA/µs)	Absolut Max. di/dt - Peak *	Absolut Max. di/dt - RMS *
SS-281A SS-28XA Manual Rogowski Current Probes Overview Bild	110 Hz - 30 MHz	max. 30 A peak	3,5 mV rms	200 mV/A	2 kA/µs	80 kA/µs	1,0 kA/µs
SS-282A SS-28XA Manual Rogowski Current Probes Overview Bild	65 Hz - 30 MHz	max. 60 A peak	2,5 mV rms	100 mV/A	4 kA/µs	80 kA/µs	1,5 kA/µs
SS-283A SS-28XA Manual Rogowski Current Probes Overview Bild	32 Hz - 30 MHz	max. 120 A peak	2,0 mV rms	50 mV/A	8 kA/µs	80 kA/µs	1,5 kA/µs
SS-284A SS-28XA Manual Rogowski Current Probes Overview Bild	9 Hz - 30 MHz	max. 300 A peak	1,8 mV rms	20 mV/A	20 kA/µs	80 kA/µs	1,5 kA/µs
SS-285A SS-28XA Manual Rogowski Current Probes Overview Bild	6 Hz - 30 MHz	max. 600 A peak	1,8 mV rms	10 mV/A	40 kA/µs	80 kA/µs	1,5 kA/µs
SS-286A SS-28XA Manual Rogowski Current Probes Overview Bild	3 Hz - 30 MHz	max. 1200 A peak	1,8 mV rms	5 mV/A	80 kA/µs	80 kA/µs	2,0 kA/µs
SS-287A SS-28XA Manual Rogowski Current Probes Overview Bild	2 Hz - 30 MHz	max. 3000 A peak	1,4 mV rms	2 mV/A	80 kA/µs	80 kA/µs	2,0 kA/µs
SS-288A SS-28XA Manual Rogowski Current Probes Overview Bild	2 Hz - 30 MHz	max. 6000 A peak	1,4 mV rms	1 mV/A	80 kA/µs	80 kA/µs	2,0 kA/µs
SS-289A SS-28XA Manual Rogowski Current Probes Overview Bild	2 Hz - 30 MHz	max. 12000 A peak	1,4 mV rms	0,5 mV/A	80 kA/µs	80 kA/µs	2,0 kA/µs
SS-280A SS-28XA Manual Rogowski Current Probes Overview Bild	2 Hz - 30 MHz	max. 30000 A peak	1,4 mV rms	0,2 mV/A	80 kA/µs	80 kA/µs	0,5 kA/µs

Serie SS-280A-H (Erweiterter Temperaturbereich)

Bestellnummer	Bandbreite (-3dB)	Stromstärke	Rauschen	Empfindlichkeit	Peak di/dt (kA/µs)	Absolut Max. di/dt - Peak *	Absolut Max. di/dt - RMS *
SS-281A-H SS-28XA Manual Rogowski Current Probes Overview Bild	110 Hz - 30 MHz	max. 30 A peak	3,5 mV rms	200 mV/A	2 kA/µs	80 kA/µs	1,0 kA/µs
SS-282A-H SS-28XA Manual Rogowski Current Probes Overview Bild	65 Hz - 30 MHz	max. 60 A peak	2,5 mV rms	100 mV/A	4 kA/µs	80 kA/µs	1,5 kA/µs
SS-283A-H SS-28XA Manual Rogowski Current Probes Overview Bild	32 Hz - 30 MHz	max. 120 A peak	2,0 mV rms	50 mV/A	8 kA/µs	80 kA/µs	1,5 kA/µs
SS-284A-H SS-28XA Manual Rogowski Current Probes Overview Bild	9 Hz - 30 MHz	max. 300 A peak	1,8 mV rms	20 mV/A	20 kA/µs	80 kA/µs	1,5 kA/µs
SS-285A-H SS-28XA Manual Rogowski Current Probes Overview Bild	6 Hz - 30 MHz	max. 600 A peak	1,8 mV rms	10 mV/A	40 kA/µs	80 kA/µs	1,5 kA/µs
SS-286A-H SS-28XA Manual Rogowski Current Probes Overview Bild	3 Hz - 30 MHz	max. 1200 A peak	1,8 mV rms	5 mV/A	40 kA/µs	40 kA/µs	2,0 kA/µs
SS-287A-H SS-28XA Manual Rogowski Current Probes Overview Bild	2 Hz - 30 MHz	max. 3000 A peak	1,4 mV rms	2 mV/A	40 kA/µs	40 kA/µs	2,0 kA/µs
SS-288A-H SS-28XA Manual Rogowski Current Probes Overview Bild	2 Hz - 30 MHz	max. 6000 A peak	1,4 mV rms	1 mV/A	40 kA/µs	40 kA/µs	2,0 kA/µs
SS-289A-H SS-28XA Manual Rogowski Current Probes Overview Bild	2 Hz - 30 MHz	max. 12000 A peak	1,4 mV rms	0,5 mV/A	40 kA/µs	40 kA/µs	2,0 kA/µs
SS-280A-H SS-28XA Manual Rogowski Current Probes Overview Bild	2 Hz - 30 MHz	max. 30000 A peak	1,4 mV rms	0,2 mV/A	50 kA/µs	50 kA/µs	0,5 kA/µs

Serie SS-290

Bestellnummer	Bandbreite (-3dB)	Stromstärke	Rauschen	Empfindlichkeit	Peak di/dt (kA/µs)	Absolut Max. di/dt - Peak *	Absolut Max. di/dt - RMS *
SS-293L SS-29x Manual Rogowski Current Probes Overview	1 Hz - 10 MHz	max. 1200 A peak	3,5 mV rms	5 mV/A	32 kA/µs	80 kA/µs	3,0 kA/µs
SS-293S SS-29x Manual Rogowski Current Probes Overview	1 Hz - 20 MHz	max. 1200 A peak	3,5 mV rms	5 mV/A	60 kA/µs	80 kA/µs	3,0 kA/µs
SS-294L SS-29x Manual Rogowski Current Probes Overview	0,8 - 10 MHz	max. 3000 A peak	2,0 mV rms	2 mV/A	80 kA/µs	80 kA/µs	3,0 kA/µs
SS-294S SS-29x Manual Rogowski Current Probes Overview	0,8 - 20 MHz	max. 3000 A peak	2,0 mV rms	2 mV/A	80 kA/µs	80 kA/µs	3,0 kA/µs
SS-295L SS-29x Manual Rogowski Current Probes Overview	0,6 - 10 MHz	max. 6000 A peak	1,4 mV rms	1 mV/A	80 kA/µs	80 kA/µs	3,0 kA/µs
SS-295S SS-29x Manual Rogowski Current Probes Overview	0,6 - 20 MHz	max. 6000 A peak	1,4 mV rms	1 mV/A	80 kA/µs	80 kA/µs	3,0 kA/µs
SS-296L SS-29x Manual Rogowski Current Probes Overview	0,4 - 10 MHz	max. 12000 A peak	1,2 mV rms	0,5 mV/A	80 kA/µs	80 kA/µs	3,0 kA/µs
SS-296S SS-29x Manual Rogowski Current Probes Overview	0,4 - 20 MHz	max. 12000 A peak	1,2 mV rms	0,5 mV/A	80 kA/µs	80 kA/µs	3,0 kA/µs
SS-297L SS-29x Manual Rogowski Current Probes Overview	0,2 - 10 MHz	max. 30000 A peak	1 mV rms	0,2 mV/A	80 kA/µs	80 kA/µs	3,0 kA/µs
SS-297S SS-29x Manual Rogowski Current Probes Overview	0,2 - 20 MHz	max. 30000 A peak	1 mV rms	0,2 mV/A	80 kA/µs	80 kA/µs	3,0 kA/µs
SS-298L SS-29x Manual Rogowski Current Probes Overview	0,1 - 10 MHz	max. 60000 A peak	1 mV rms	0,1 mV/A	80 kA/µs	80 kA/µs	3,0 kA/µs
SS-298S SS-29x Manual Rogowski Current Probes Overview	0,1 - 20 MHz	max. 60000 A peak	1 mV rms	0,1 mV/A	80 kA/µs	80 kA/µs	3,0 kA/µs
SS-299L SS-29x Manual Rogowski Current Probes Overview	0,1 - 5 MHz	max. 120000 A peak	1 mV rms	0,05 mV/A	80 kA/µs	80 kA/µs	3,0 kA/µs
SS-299S SS-29x Manual Rogowski Current Probes Overview	0,1 - 5 MHz	max. 120000 A peak	1 mV rms	0,05 mV/A	80 kA/µs	80 kA/µs	3,0 kA/µs

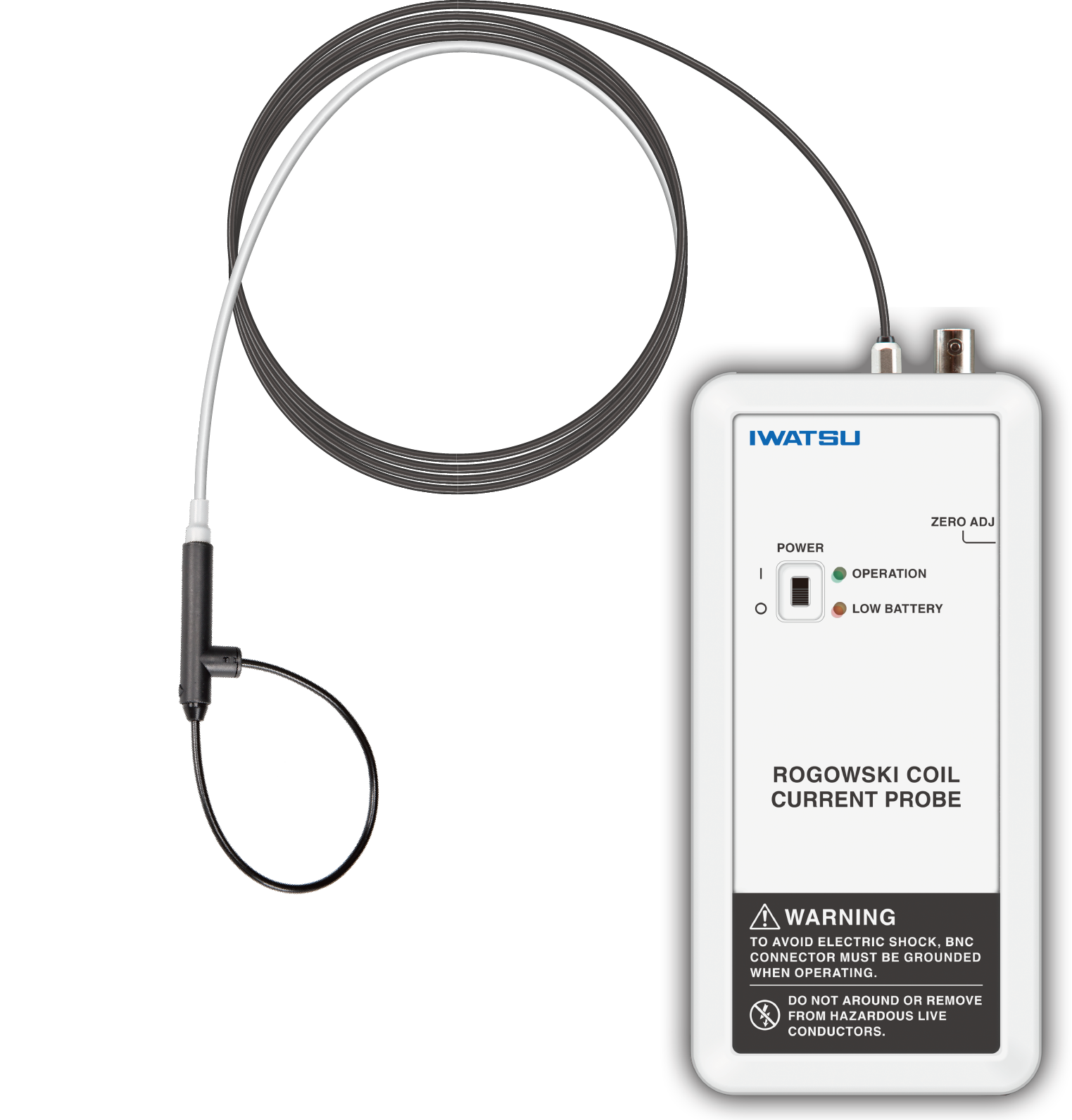

Serie SS-620

Bestellnummer	Bandbreite (-3dB)	Stromstärke	Rauschen	Empfindlichkeit	Peak di/dt (kA/µs)	Absolut Max. di/dt - Peak *	Absolut Max. di/dt - RMS *
SS-622S SS-62x Manual Rogowski Current Probes Overview Bild	25 Hz - 25 MHz	max. 60 A peak	5,0 mV rms	100 mV/A	4 kA/µs	80 kA/µs	3,0 kA/µs
SS-622M SS-62x Manual Rogowski Current Probes Overview Bild	25 Hz - 20 MHz	max. 60 A peak	5,0 mV rms	200 mV/A	TBD	80 kA/µs	3,0 kA/µs
SS-623S SS-62x Manual Rogowski Current Probes Overview Bild	10 Hz - 25 MHz	max. 120 A peak	5,0 mV rms	50 mV/A	6 kA/µs	80 kA/µs	3,0 kA/µs
SS-623M SS-62x Manual Rogowski Current Probes Overview Bild	10 Hz - 20 MHz	max. 120 A peak	5,0 mV rms	50 mV/A	8 kA/µs	80 kA/µs	3,0 kA/µs
SS-624S SS-62x Manual Rogowski Current Probes Overview Bild	4 Hz - 25 MHz	max. 300 A peak	5,0 mV rms	20 mV/A	16 kA/µs	80 kA/µs	3,0 kA/µs
SS-624M SS-62x Manual Rogowski Current Probes Overview Bild	4 Hz - 20 MHz	max. 300 A peak	5,0 mV rms	20 mV/A	20 kA/µs	80 kA/µs	3,0 kA/µs
SS-625S SS-62x Manual Rogowski Current Probes Overview Bild	2 Hz - 25 MHz	max. 600 A peak	5,0 mV rms	10 mV/A	32 kA/µs	80 kA/µs	3,0 kA/µs
SS-625M SS-62x Manual Rogowski Current Probes Overview Bild	2 Hz - 20 MHz	max. 600 A peak	5,0 mV rms	10 mV/A	40 kA/µs	80 kA/µs	3,0 kA/µs
SS-626S SS-62x Manual Rogowski Current Probes Overview Bild	1 Hz - 25 MHz	max. 1200 A peak	3,5 mV rms	5 mV/A	60 kA/µs	80 kA/µs	3,0 kA/µs
SS-626M SS-62x Manual Rogowski Current Probes Overview Bild	1 Hz - 20 MHz	max. 1200 A peak	3,5 mV rms	5 mV/A	80 kA/µs	80 kA/µs	3,0 kA/µs
SS-627S SS-62x Manual Rogowski Current Probes Overview Bild	0,8 Hz - 25 MHz	max. 3000 A peak	2,0 mV rms	2 mV/A	80 kA/µs	80 kA/µs	3,0 kA/µs
SS-627M SS-62x Manual Rogowski Current Probes Overview Bild	0,8 Hz - 20 MHz	max. 3000 A peak	2,0 mV rms	2 mV/A	80 kA/µs	80 kA/µs	3,0 kA/µs
SS-628S SS-62x Manual Rogowski Current Probes Overview Bild	0,6 Hz - 25 MHz	max. 6000 A peak	1,4 mV rms	1 mV/A	80 kA/µs	80 kA/µs	3,0 kA/µs
SS-628M SS-62x Manual Rogowski Current Probes Overview Bild	0,6 Hz - 20 MHz	max. 6000 A peak	1,4 mV rms	1 mV/A	80 kA/µs	80 kA/µs	3,0 kA/µs
SS-629S SS-62x Manual Rogowski Current Probes Overview Bild	0,4 Hz - 25 MHz	max. 12000 A peak	1,2 mV rms	0,5 mV/A	80 kA/µs	80 kA/µs	3,0 kA/µs
SS-629M SS-62x Manual Rogowski Current Probes Overview Bild	0,4 Hz - 20 MHz	max. 12000 A peak	1,2 mV rms	0,5 mV/A	80 kA/µs	80 kA/µs	3,0 kA/µs

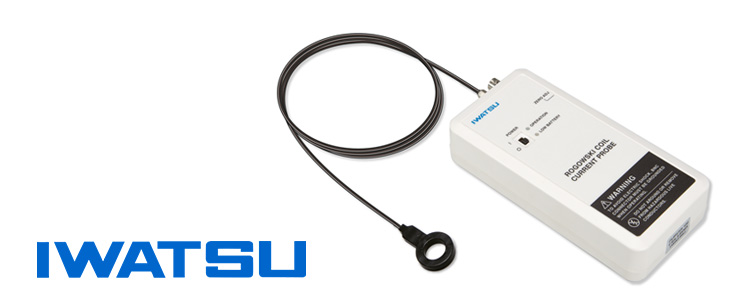

Serie SS-630

Bild	Merkzettel	Bestellnummer	Bandbreite (-3dB)	Stromstärke	Rauschen	Empfindlichkeit	Peak di/dt (kA/µs)	Absolut Max. di/dt - Peak *	Absolut Max. di/dt - RMS *
		SS-630S	0,2 Hz - 20 MHz	max. 30000 A peak	1,1 mV rms	0,2 mV/A	80 kA/µs	80 kA/µs	3,0 kA/µs
		SS-630M Rogowski Current Probes Overview	0,2 Hz - 20 MHz	max. 30000 A peak	1,1 mV rms	0,2 mV/A	80 kA/µs	80 kA/µs	3,0 kA/µs

Bestellnummer

Bandbreite (-3dB)

Stromstärke

Rauschen

Empfindlichkeit

Peak di/dt (kA/µs)

Absolut Max. di/dt - Peak *

Absolut Max. di/dt - RMS *

SS-630S

0,2 Hz - 20 MHz

max. 30000 A peak

1,1 mV rms

0,2 mV/A

80 kA/µs

3,0 kA/µs

SS-630M

Rogowski Current Probes Overview

0,2 Hz - 20 MHz

max. 30000 A peak

1,1 mV rms

0,2 mV/A

80 kA/µs

3,0 kA/µs

Serie SS-660

Bestellnummer	Bandbreite (-3dB)	Stromstärke	Rauschen	Empfindlichkeit	Peak di/dt (kA/µs)	Absolut Max. di/dt - Peak *	Absolut Max. di/dt - RMS *
SS-662 Rogowski Current Probes Overview SS-66x Manual	110 Hz - 30 MHz	max. 60 A peak	5,0 mV rms	100 mV/A	4 kA/µs	80 kA/µs	3,0 kA/µs
SS-662P Rogowski Current Probes Overview SS-66x Manual	110 Hz - 30 MHz	max. 60 A peak	5,0 mV rms	100 mV/A	4 kA/µs	80 kA/µs	3,0 kA/µs
SS-663 SS-66x Manual Rogowski Current Probes Overview	65 Hz - 30 MHz	max. 120 A peak	3,5 mV rms	50 mV/A	8 kA/µs	80 kA/µs	3,0 kA/µs
SS-663P Rogowski Current Probes Overview SS-66x Manual	65 Hz - 30 MHz	max. 120 A peak	3,5 mV rms	50 mV/A	8 kA/µs	80 kA/µs	3,0 kA/µs
SS-664 SS-66x Manual Rogowski Current Probes Overview	32 Hz - 30 MHz	max. 300 A peak	2,5 mV rms	20 mV/A	20 kA/µs	80 kA/µs	3,0 kA/µs
SS-664P Rogowski Current Probes Overview SS-66x Manual	32 Hz - 30 MHz	max. 300 A peak	2,5 mV rms	20 mV/A	20 kA/µs	80 kA/µs	3,0 kA/µs
SS-665 SS-66x Manual Rogowski Current Probes Overview	17 Hz - 30 MHz	max. 600 A peak	2,0 mV rms	10 mV/A	40 kA/µs	80 kA/µs	3,0 kA/µs
SS-665P Rogowski Current Probes Overview SS-66x Manual	17 Hz - 30 MHz	max. 600 A peak	2,0 mV rms	10 mV/A	40 kA/µs	80 kA/µs	3,0 kA/µs
SS-666 Rogowski Current Probes Overview SS-66x Manual	9 Hz - 30 MHz	max. 1200 A peak	1,8 mV rms	5 mV/A	80 kA/µs	80 kA/µs	3,0 kA/µs
SS-666P Rogowski Current Probes Overview SS-66x Manual	9 Hz - 30 MHz	max. 1200 A peak	1,8 mV rms	5 mV/A	80 kA/µs	80 kA/µs	3,0 kA/µs

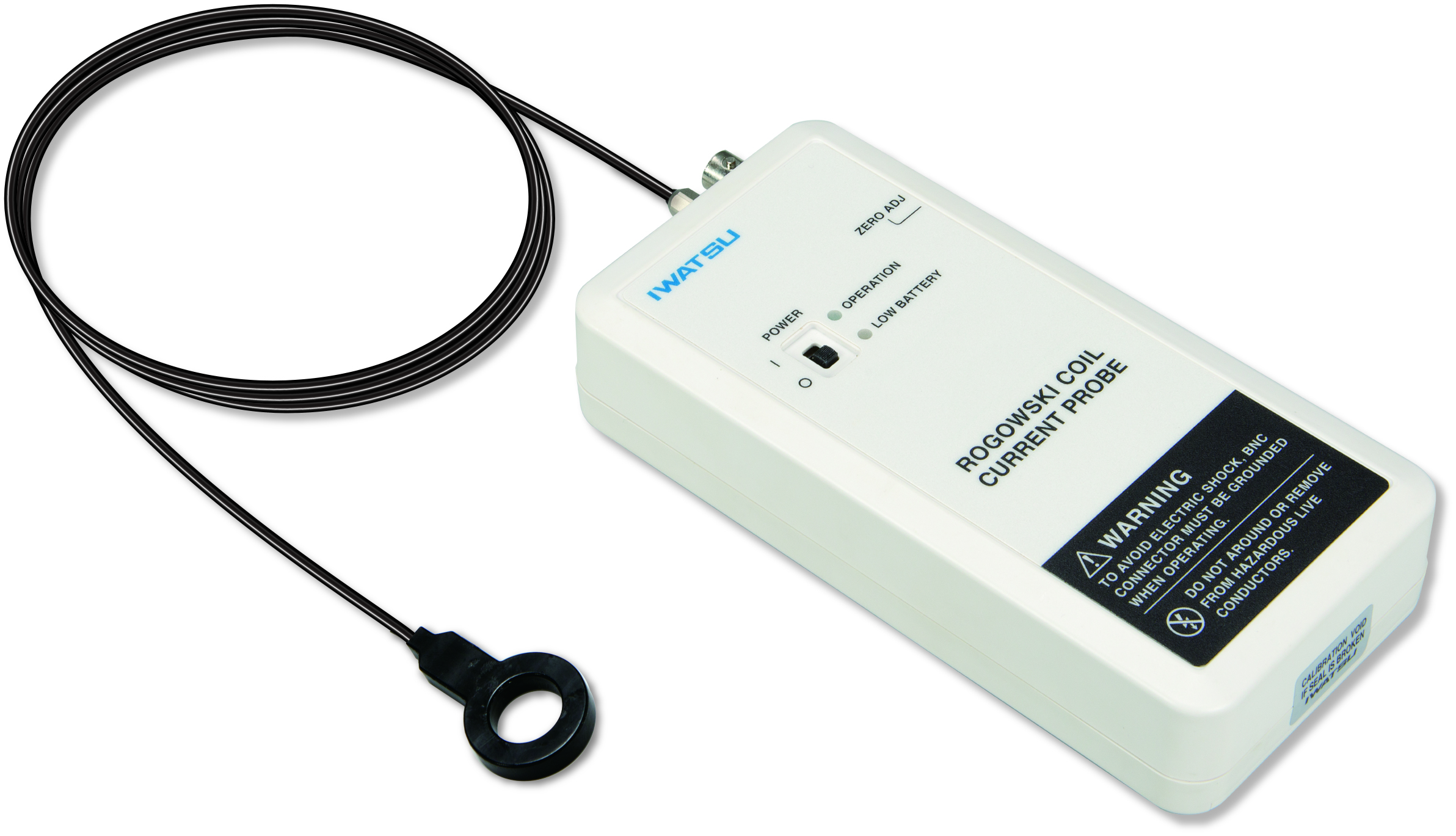

Serie SS-680

Bestellnummer	Bandbreite (-3dB)	Stromstärke	Rauschen	Empfindlichkeit	Peak di/dt (kA/µs)	Absolut Max. di/dt - Peak *	Absolut Max. di/dt - RMS *
SS-683 SS-68x Manual Rogowski Current Probes Overview Bild	65 Hz - 100 MHz	max. 120 A peak	1,8 mV rms	10 mV/A	30 kA/µs	150 kA/µs	3,0 kA/µs
SS-684 SS-68x Manual Rogowski Current Probes Overview Bild	32 Hz - 100 MHz	max. 300 A peak	1,8 mV rms	5 mV/A	85 kA/µs	150 kA/µs	3,0 kA/µs
SS-685 SS-68x Manual Rogowski Current Probes Overview Bild	15 Hz - 100 MHz	max. 600 A peak	1,8 mV rms	2 mV/A	150 kA/µs	150 kA/µs	3,0 kA/µs
SS-686 Rogowski Current Probes Overview SS-68x Manual	8 Hz - 100 MHz	max. 1200 A peak	1,8 mV rms	1 mV/A	90 kA/µs	90 kA/µs	3,0 kA/µs
SS-687 Rogowski Current Probes Overview SS-68x Manual	5 Hz - 50 MHz	max. 3000 A peak	1,8 mV rms	0,5 mV/A	90 kA/µs	90 kA/µs	3,0 kA/µs
SS-688 Rogowski Current Probes Overview SS-68x Manual	3 Hz - 30 MHz	max. 6000 A peak	1,8 mV rms	0,2 mV/A	90 kA/µs	90 kA/µs	3,0 kA/µs
SS-689 Rogowski Current Probes Overview SS-68x Manual	2 Hz - 30 MHz	max. 12000 A peak	1,8 mV rms	0,1 mV/A	90 kA/µs	90 kA/µs	3,0 kA/µs

Mechanisch

Bestellnummer	Arbeitsbereich (° C)	Spulenlänge
Serie SS-280A	-40°C bis +125°C	80mm
Serie SS-280A-H	-40°C bis +150°C	80mm
Serie SS-290 S	-40°C bis +125°C	300mm
Serie SS-290 L	-40°C bis +125°C	700mm
Serie SS-620 S	-40°C bis +125°C	100mm
Serie SS-620 M	-40°C bis +125°C	200mm
Serie SS-660	-40°C bis +125°C	80mm/84mm
Serie SS-680	-10°C bis +70°C	14mm

* Dies sind "Absolute maximale di/dt Werte" und dürfen nicht überschritten werden.

Anwendungsbeschreibung (englisch):

The Basics of Rogowski Coil Current Probe

High Speed SW Current measurement

Low frequency characteristics of Rogowski Coil Probe and Droop

Zurück zum Katalog
